Analog Electronics Lab Report Week 6

Benna Su.

Part2b)

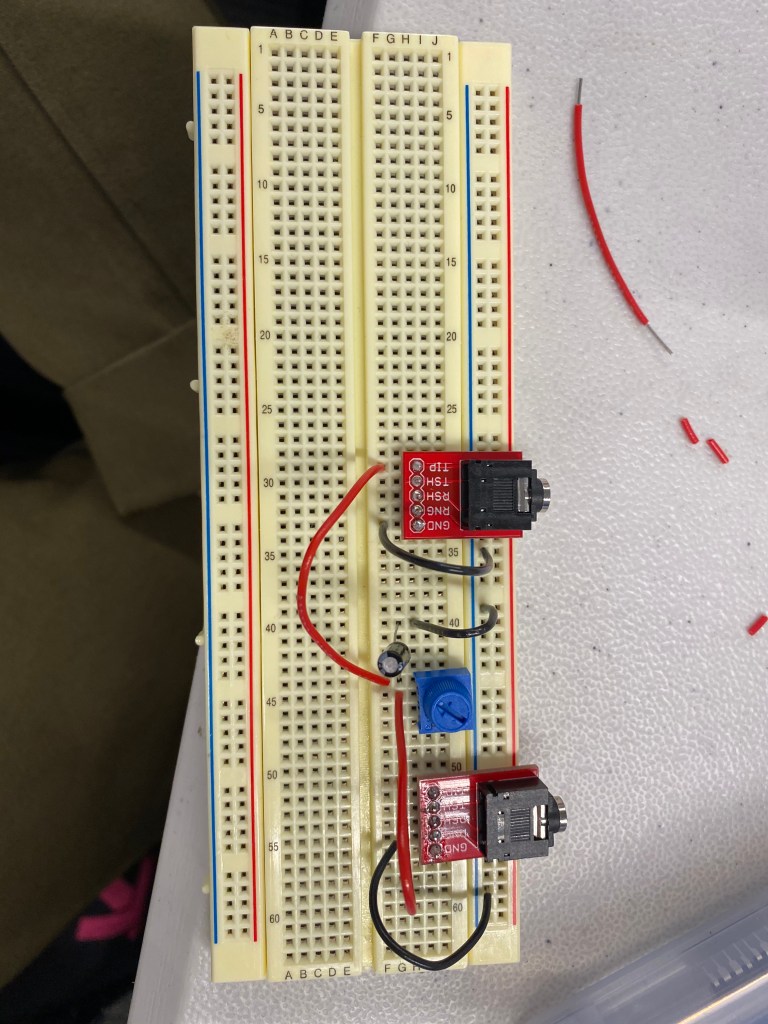

This is the photo of my Low pass filter circuit.

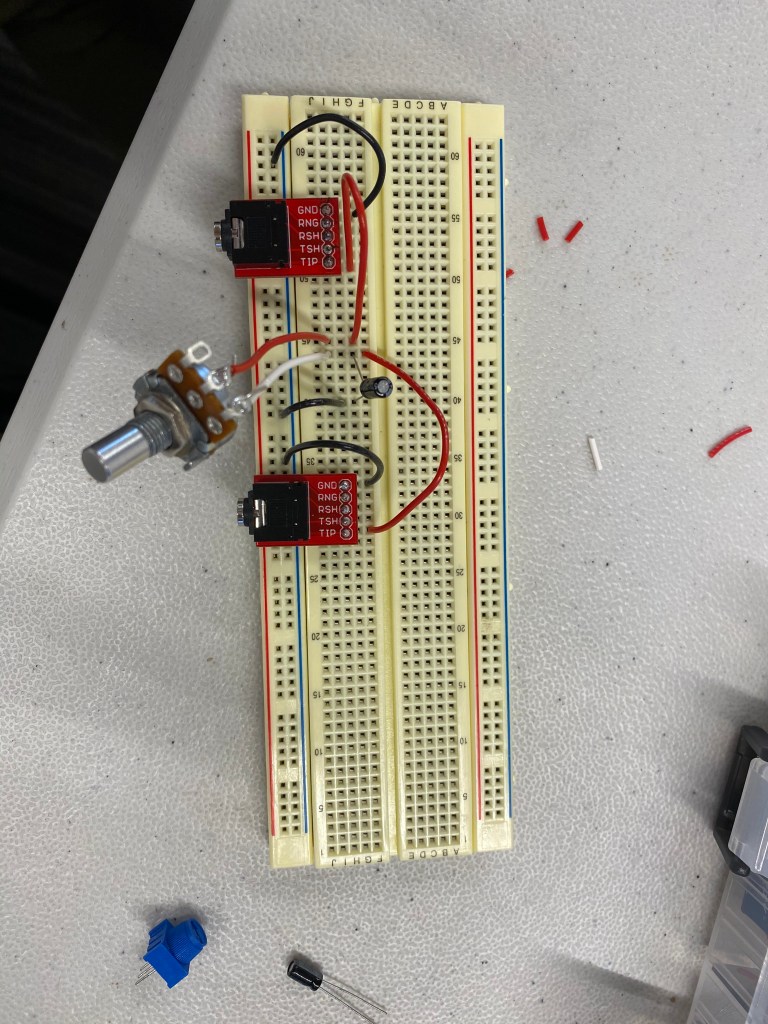

2c)This is my picture of my high pass filter circuit.

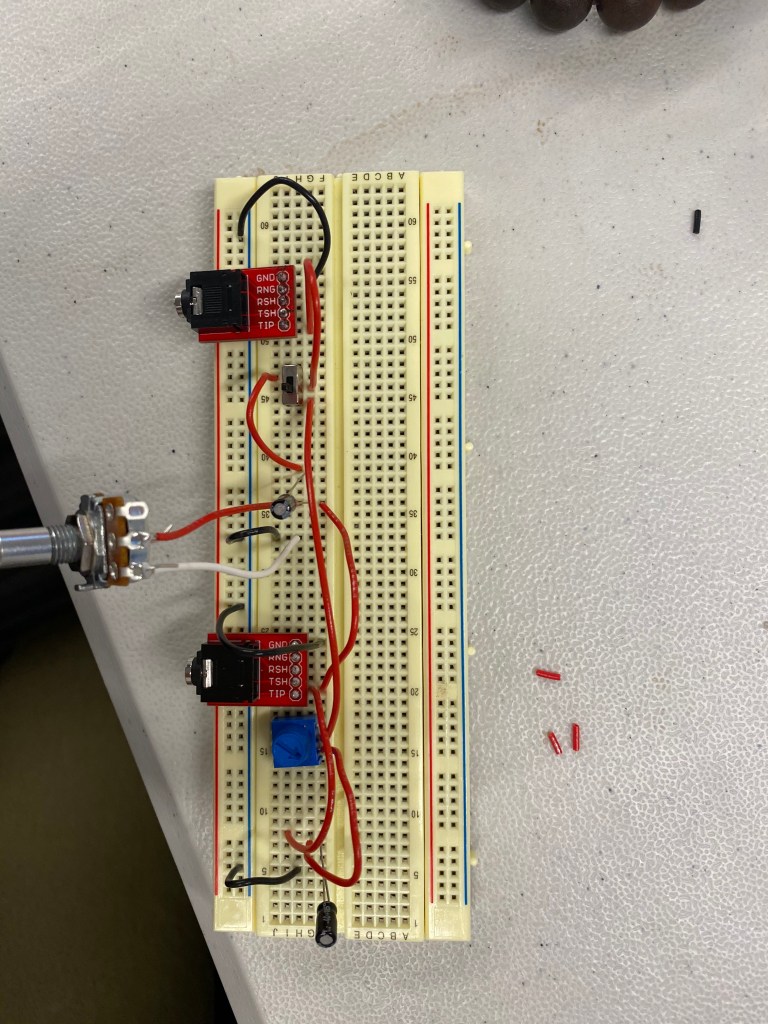

Part3) Adding a switch!

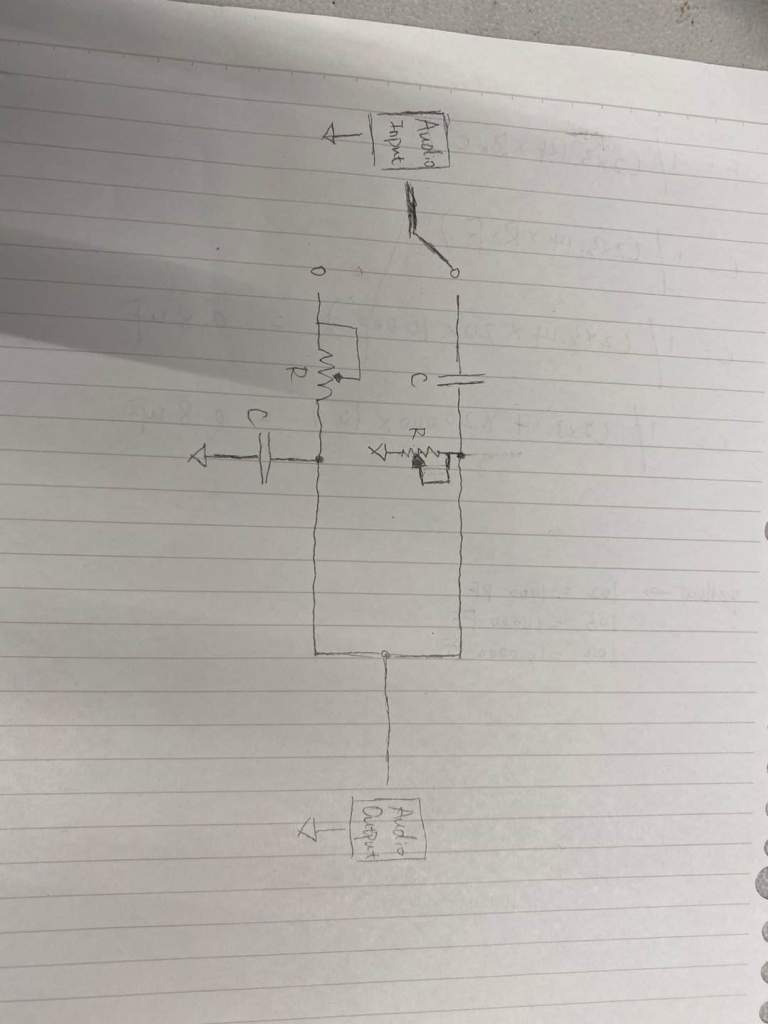

Schematics!

Part4)

I think you have to make the resistor or capacitor smaller in order to build the filter with 12db octave or 24db octave.

part5)

a) For me, I want to build a filter with high pass, low pass and band pass. And also I want to add a distortion on my filter, so it can add distortion while it passes out the sequence at the same time.

b)If I could, I would build a synthesizer with the function of adjusting ADSR, frequency modulation, filtering, etc together. Basically I want it build as a mini moog, you can play melody while you adjusting different elements.

c)I am not sure but I think Microphone should definitely be one of the analog electronics equipments that I want to study and learn the function of it. I know it might be pretty difficuilt to build a good mic, but if i have a chance, I will definitely build one for myself.
